Parking Lot Line Dimensions & Striping Standards

QUICK ANSWER: Parking lot stall lines are 4 inches wide under the MUTCD, run the full depth of the stall (typically 18 feet), and standard commercial stalls measure 9 feet wide by 18 feet deep.

Property owners ask me this more than you would expect: how wide are these lines actually supposed to be? There are real published standards behind every number on a striped parking lot. Here are the actual dimensions and standards we build every layout around.

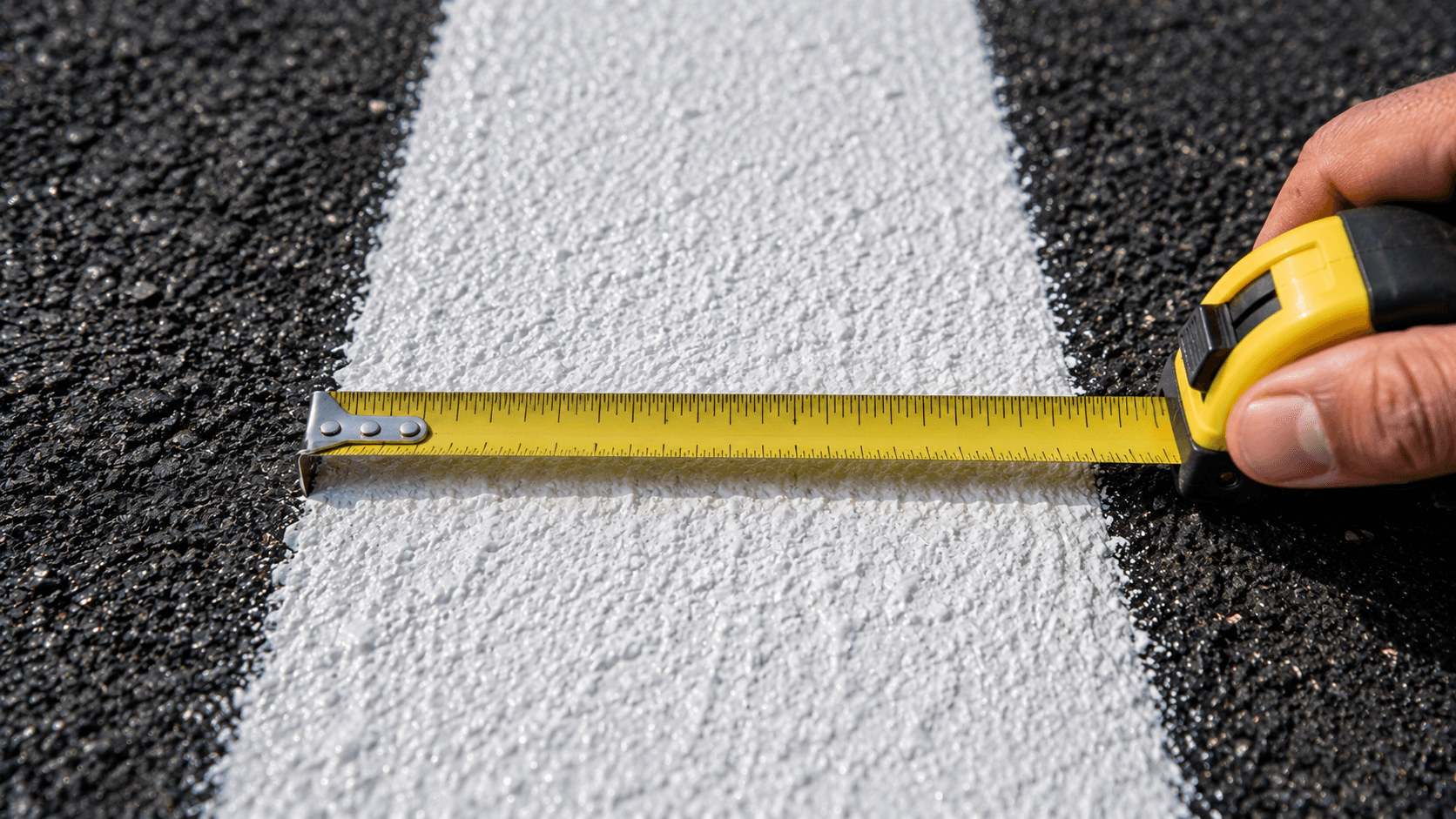

Parking lot stall lines are standardized at 4 inches wide under the Manual on Uniform Traffic Control Devices (MUTCD), the federal reference most states and municipalities follow for pavement markings. Some fire lane and crosswalk markings use wider bands, but standard stall lines are 4 inches.

A standard commercial stall line runs the depth of the stall, typically 18 feet for a standard-size space. The line itself is a continuous stripe along each side of the stall, not a broken or dashed line, the way a travel lane marking might be.

Stall size is a separate spec from the line itself. A standard commercial stall runs 9 feet wide by 18 feet deep, the figure the Urban Land Institute (ULI) uses as its baseline for passenger vehicles. Compact stalls, where local code allows them, typically run 8 to 8.5 feet wide by 15 to 16 feet deep.

Three sources cover most of what a commercial layout needs to follow: the MUTCD for line specifications and colors, the U.S. Access Board for ADA-compliant accessible stall and aisle dimensions, and local fire code for fire lane width and markings. Not every jurisdiction enforces every detail the same way, so local code always has the final say.

Spacing depends on stall angle. 90-degree layouts need the widest aisles at 24 feet for two-way traffic. Angled layouts (45 to 60 degrees) can run one-way aisles as narrow as 12 to 16 feet, which is one of the most common ways a layout redesign finds extra usable space on the same lot.

Our parking lot striping layout guide walks through how these dimensions come together into a full layout, and our ADA parking lot markings guide covers the exact accessible stall and aisle specs required by federal law.

Parking lot stall lines are 4 inches wide under the MUTCD, the federal standard most states and municipalities follow for pavement markings.

A stall line runs the full depth of the parking stall, typically 18 feet for a standard commercial space, as a single continuous stripe on each side.

A standard commercial stall is 9 feet wide by 18 feet deep, the baseline the Urban Land Institute uses for passenger vehicles. Compact stalls, where allowed, run smaller.

The MUTCD provides the federal baseline, but individual states and municipalities can add their own requirements, particularly around fire lane markings and stall counts. Always confirm local code before finalizing a layout.
